Product Description

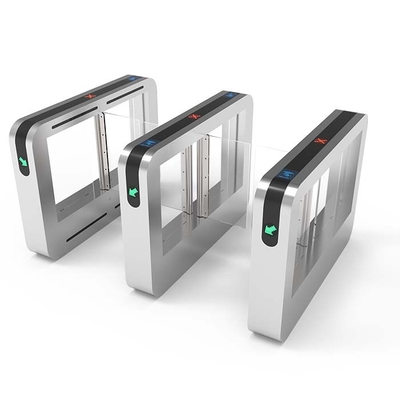

Product Description Intelligent speed gate turnstile TDZ-B242 is transparent. bright. simple and elegant, The housing material is made of 304# stainless steel with 2.0mm thickness, The mechanism modules are servo motor and precise position encoder, make sure the speed gate can rotate quickly. quietly. stably and accurately, with low-power consumption. energy conservation and environment protection

Feature 1. By using 8 pairs of military level high-performance infrared sensors and exact algorithms. It can accurately detect the user’s passing position to achieve the purpose such as anti-tailing. Anti-reverse passing and anti-clamping etc. 2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit 3. The widen lane is optional for carrying luggage and wheelchair access. 4. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers. 5. It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment. 6. After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close automatically 7. Arm automatically open when the power off to make sure safety In case of emergency 8. Optional for external counter to record the people numbers for each lane

Occasion Application Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	TDZ
Model Number	TDZ-B242
Housing material	304 grade stainless steel
Thickness	2.0mm
Arm material	Acrylic
Size	14002001000mm
Lane width	550--900mm
Passing speed	35--50 people/min
Open/close speed	0.1--0.6sec
Operating temperature	-15 to 70℃
Input signal	Dry contact
Application	Indoor or outdoor

Packing & Delivery

standard package
